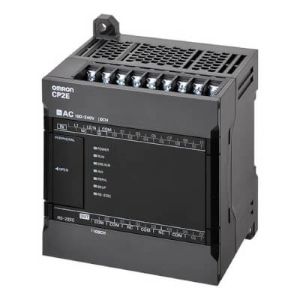

Omron CP2E-E14DR-A Programmable Logic Controller
The Omron CP2E-E14DR-A PLC CPU Unit combines 8 inputs and 6 relay outputs within a compact control configuration for machine automation applications. This Programmable Logic Controller provides a program capacity of 4K steps and 4K words of data memory for executing control sequences and storing operating information. It uses a 100 to 240 VAC, 50/60 Hz supply and supports an operating voltage range from 85 to 264 VAC. Current consumption is 0.06 A at 5 V and 0.04 A at 24 V. The CP2E-E14DR-A integrates CPU processing with relay output control and forms part of the compact relay PLC range supporting Omron machine automation.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP2E-E14DR-A |
Omron CP2E-E14DR-A Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | CPU Units with 14 points |
| Inputs | 8 points |
| Outputs | 6 points |
| Output type | Relay |
| Program capacity | 4K steps (FB capacity: 4K steps) |
| Data memory capacity | 4K words |
| Current consumption 5 VDC | 0.06 A |
| Current consumption 24 VDC | 0.04 A |
| Dimensions (H × D × W) | 90mm *1 ×80mm *2 × 86mm |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 15 VA/100 VAC max., 25 VA/240 VAC max. |
| Inrush current | 120 VAC, 20 A for 8 ms max. for cold start at room temperature 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC, terminals and GR terminals |
| Power interrupt time | 10 ms min |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60°C |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Weight | 335g max. |
The Omron CP2E-E14DR-A PLC includes 14 I/O points, with 8 digital inputs and 6 relay outputs, making it an excellent solution for compact automation systems. It supports up to 4K program steps and has 4K words of data memory, allowing engineers to implement basic to moderately complex control logic efficiently. The relay output configuration makes it compatible with a wide range of industrial devices, including contactors and motor starters.
This Omron PLC operates on a 100 to 240 VAC power supply, with an operating voltage range of 85 to 264 VAC. It draws only 0.06 A at 5 VDC and 0.04 A at 24 VDC, maintaining low power consumption while delivering consistent performance. With a maximum power consumption of 25 VA and inrush current support up to 40 A, it ensures stable startup under high-load conditions. Its compact dimensions—just 90mm × 80mm × 86mm—make it easy to install in small control cabinets.
Designed for industrial-grade reliability, the CP2E-E14DR-A operates in environments with temperatures from –20°C to 60°C and altitudes up to 2,000 meters. It offers 20 MΩ insulation resistance at 500 VDC and withstands power interruptions of at least 10 ms. With trusted Omron build quality, this PLC is widely adopted for its stability, energy efficiency, and space-saving design.
