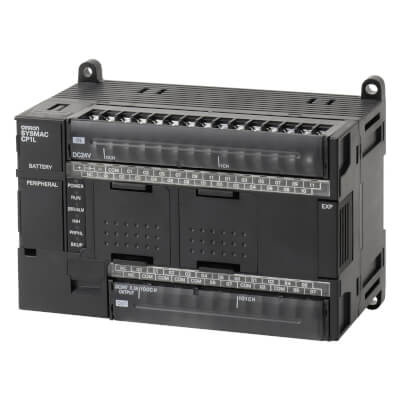

The Omron CP1L-M40DR-D PLC CPU Unit provides 24 digital inputs and 16 relay outputs for compact industrial automation and machine-control applications. This Programmable Logic Controller offers a 10K-step program capacity together with 100 kHz high-speed counters across 4 axes for fast input processing and control sequences. Its DC-powered architecture includes a built-in USB port for programming and interface connectivity with engineering systems. The relay outputs support electrical switching of connected industrial loads in general-purpose machine applications. The CP1L-M40DR-D combines DC-powered CPU control with high-speed counting and relay outputs and belongs to the DC relay PLC range used within Omron machine automation.
No insulation between primary and secondary for DC power
supply
Dielectric strength
No insulation between primary and secondary for DC power
supply
Noise immunity
Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance
Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for
80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes)
Shock resistance
Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions
Ambient operating temperature
0 to 55°C
Ambient humidity
10% to 90% (with no condensation)
Ambient operating environment
No corrosive gas
Ambient storage temperature
−20 to 75°C (Excluding battery.)
Power holding time
2 ms min
Function blocks
Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length
1 to 7 steps per instruction
Instructions
Approx. 500 (function codes: 3 digits)
Instruction execution time
Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min
Common processing time
0.4ms
Inrush current *
30 A max. (for cold start at room temperature) 20 ms max.
