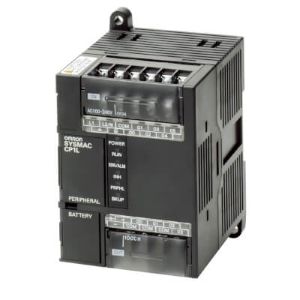

The Omron CP1L-M30DT-D Programmable Logic Controller (PLC) is a compact CPU Unit offering 30 I/O points, including 18 inputs and 12 transistor outputs. With a 10K-step program capacity, 100 kHz counters, and 100 kHz pulse outputs, it supports accurate sequence and motion control. Powered by a DC supply, it includes a built-in USB port for seamless programming. Manufactured by Omron inside the Omron Programmable Logic Controller family under the Omron CP1L Series.
No insulation between primary and secondary for DC power
supply
Dielectric strength
No insulation between primary and secondary for DC power
supply
Noise immunity
Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance
Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for
80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes)
Shock resistance
Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions
Ambient operating temperature
0 to 55°C
Ambient humidity
10% to 90% (with no condensation)
Ambient operating environment
No corrosive gas
Ambient storage temperature
−20 to 75°C (Excluding battery.)
Power holding time
2 ms min.
Function blocks
Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length
1 to 7 steps per instruction
Instructions
Approx. 500 (function codes: 3 digits)
Instruction execution time
Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min
Common processing time
0.4ms
Inrush current *
30 A max. (for cold start at room temperature)
20 ms max.
