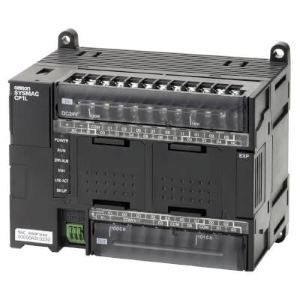

Omron CP1L-EM30DT-D Programmable Logic Controller
The Omron CP1L-EM30DT-D PLC CPU Unit combines 18 digital inputs with 12 transistor outputs for compact machine-control and industrial automation applications. This Programmable Logic Controller provides a 10K-step program capacity together with 100 kHz high-speed counters and 100 kHz pulse outputs for applications requiring fast counting and positioning functions. Its DC-powered architecture includes built-in Ethernet and USB connectivity, supporting communication with automation devices and engineering systems. The transistor output configuration enables responsive electronic switching for automated machine sequences. The CP1L-EM30DT-D combines high-speed control functions with integrated network connectivity and belongs to the compact transistor PLC range supporting Omron automation.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP1L-EM30DT-D |
| Specification | Value |
|---|---|
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Power Supply | 24 VDC |
| Output method | Transistor output (sinking) |
| Inputs | 18 |
| Outputs | 12 |
| Program language | Ladder diagram |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20 W max. |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | 5 to 8.4 Hz, 3.5 mm amplitude, 8.4 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 100 minutes each (time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | −20 to 75°C (Excluding battery.) |
| Power holding time | 2 ms min |
| Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min |
| Common processing time | 0.4ms |
| Inrush current * | 30 A max. (for cold start at room temperature) 20 ms max. |
The Omron CP1L-EM30DT-D is engineered for compact automation systems requiring reliable digital I/O and precise motion control. Its 18 inputs and 12 transistor outputs allow integration with sensors, actuators, and control modules for assembly lines, packaging machines, and small-scale industrial processes. High-speed counters and pulse outputs deliver responsive execution for timed operations and motion synchronization.
Omron CP1L-EM30DT-D is widely deployed in factory automation, machine control, and process monitoring applications where space-saving design and fast communication are essential. The built-in Ethernet and USB connectivity simplify integration with external devices, while the transistor outputs enhance durability for general-purpose automation tasks. System integrators benefit from its compact footprint and organized layout for easy installation and maintenance.
Stable DC power, robust construction, and high-speed processing make CP1L-EM30DT-D suitable for continuous operation in demanding industrial environments. OEMs, automation companies, and industrial buyers select this Omron PLC CPU unit for projects requiring dependable 18 digital inputs, 12 transistor outputs, fast motion control, and long-term operational reliability in small-to-medium scale automation systems.
