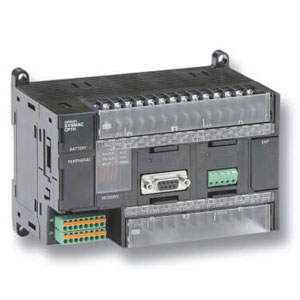

Omron CP1H-X40DR-A Programmable Logic Controller
The Omron CP1H-X40DR-A PLC CPU Unit combines 24 digital inputs and 16 relay outputs for compact industrial machine-control applications. This Programmable Logic Controller provides a 20K-step program capacity together with 100 kHz high-speed counters and 100 kHz pulse outputs for applications requiring fast signal processing and machine control. Support for expansion units and communication modules allows the controller to be integrated into scalable automation systems as additional functionality is required. Its relay output configuration supports switching requirements across a range of industrial control applications. The CP1H-X40DR-A combines high-speed processing with integrated relay outputs and belongs to the relay output PLC range supporting Omron machine control systems.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP1H-X40DR-A |
| Specification | Value |
|---|---|
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Power Supply | 100 to 240 VAC 50/60 Hz |
| Output method | Relay output |
| Inputs | 24 |
| Outputs | 16 |
| Program language | Ladder diagram |
| Input bits | 272bits (17 words) : CIO 0.00 to 16.15 |
| Output bits | 272bits (17 words) : CIO 100.00 to 116.16 |
| Operating voltage range | 85 264 VAC |
| Power consumption | 100 VA max. |
| Inrush current (See note.) | 100 to 120 VAC inputs: 20 A max. (for cold start at room temperature), 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max. |
| External power supply | 300 mA at 24 VDC |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals |
| Dielectric strength | 2,300 VAC at 50/60 Hz for 1 min between the external AC and GR terminals, leakage current: 5 mA max. |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | −20 to 75°C (Excluding battery.) |
| Power holding time | 10 ms min. |
The Omron CP1H-X40DR-A provides high-speed processing and robust relay outputs, making it suitable for machine automation, packaging lines, assembly systems, and compact industrial control panels. Its ladder programming support allows engineers to design, modify, and maintain complex logic with efficiency. Automation professionals rely on this model for precise timing, accurate pulse generation, and stable I/O management across high-demand applications.
Omron CP1H-X40DR-A integrates seamlessly with expansion units, analog/digital I/O modules, and communication interfaces, offering flexible system configuration for scalable automation projects. Its 24 inputs and 16 relay outputs enable simultaneous control of multiple devices while maintaining signal stability. System integrators prefer this controller for retrofitting existing machines or building new industrial automation setups requiring compact but powerful PLC solutions.
Engineered for reliable operation under vibration, electrical noise, and fast-cycle environments, CP1H-X40DR-A ensures consistent performance in continuous industrial applications. Maintenance engineers appreciate its straightforward wiring layout and ladder programming compatibility, which simplify installation, troubleshooting, and future system expansion. OEMs, industrial automation companies, and panel builders often select this Omron PLC for projects needing high-speed relay output control combined with flexible ladder logic programming.
