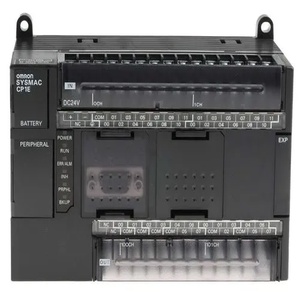

Omron CP1E-NA20DT-D Programmable Logic Controller
The Omron CP1E-NA20DT-D PLC CPU Unit combines 12 inputs and 8 sinking transistor outputs for compact machine automation and industrial control applications. This Programmable Logic Controller provides an 8K-step program capacity and 8K words of data memory for executing control sequences and storing operating information. It operates from a 24 VDC power supply and supports an operating voltage range from 20.4 to 26.4 VDC. Designed for panel mounting, the controller can be incorporated into industrial control cabinets and machine-control systems. The CP1E-NA20DT-D integrates CPU processing with sinking transistor output control and forms part of the machine control PLC range supporting Omron automation systems.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP1E-NA20DT-D |
Omron CP1E-NA20DT-D Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Power Supply | 24 VDC |
| Inputs | 12 |
| Outputs | 8 |
| Output type | Transistor (sinking) |
| Program capacity | 8K steps |
| Data memory capacity | 8K words |
| Current consumption 5V | 0.23 |
| Current consumption 24V | 0.09 |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Instructions | Approximately 200 |
| Dimensions (H × D × W) | 90mm *1 × 79mm *2 × 86 mm |
| Enclosure | Mounted in a panel |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20 W max. |
| Inrush current | 24 VDC, 30 A for 20 ms max. for cold start at room temperature |
| External power supply | Not provided |
| Insulation resistance | Except between DC primary current and DC secondary current |
| Dielectric strength | Except between DC primary current and DC secondary current |
| Power OFF detection time | 2 ms min. |
| Noise resistance | 2 kV on power supply line (Conforms to IEC61000-4-4.) |
| Vibration resistance | Conforms to JIS 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
| Shock resistance | Conforms to JIS 60068-2-27. 147 m/s2, 3 times in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55 °C |
| Ambient humidity | 10% to 90% |
| Ambient storage temperature | -20 to 75 °C (excluding battery) |
| Weight | 680g max. |
Get A Quote for Omron PLC 8 Transistor Outputs CP1E-NA20DT-D at the best price. Here are the brief Technical Specifications of CP1E-NA20DT-D are 24 VDC power supply and 12 inputs & 8 Transistor (sinking) outputs. It has a program capacity of 8K steps and a data memory capacity of 8K words. The control method uses a Stored program method with Cyclic scan with immediate refreshing. This PLC supports Ladder diagram programming with Approximately 200 instructions. It measures 90mm *1 × 79mm *2 × 86 mm and is designed to be Mounted in a panel. The operating voltage range is 20.4 to 26.4 VDC, with a power consumption of 20 W max. It's Time to get a Quote for your requirement of Omron PLC 8 Transistor Outputs. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
