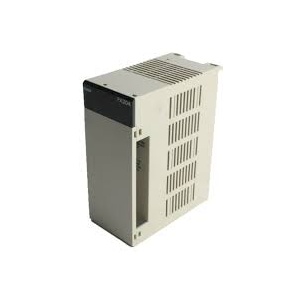

Omron C200HW-PA204R Programmable Logic Controller

The Omron C200HW-PA204R PLC Power Supply Unit converts a 100 to 240 VAC input into 5 VDC at 4 A for powering compatible modules within C200H-series Programmable Logic Controller systems. It provides the regulated DC supply required by rack modules, CPU units, and associated control components within the controller architecture. A remote run-output contact provides an interface for monitoring controller operating status as part of the automation system. The unit supports rack-based machine and process-control installations where multiple PLC components depend on a common power source. The C200HW-PA204R supports the C200HW control architecture and belongs to the PLC power supply range associated with Omron industrial control systems.

Omron C200HW-PA204R Programmable Logic Controller

Brand	Omron
Product Type	Programmable Logic Controller
Model Number	C200HW-PA204R

Specification	Value
Operating Voltage Range	85 to 264 VAC
Inrush Current	100 to 120 VAC: 30 A max., 200 to 240 VAC: 40 A max.
Insulation Resistance	20 MΩ min. (at 500 VDC)
Dielectric Strength	2,300 VAC 50/60 Hz for 1 min
Grounding	Less than 100 Ω
Ambient operating temperature	0 to 55°C
Ambient storage temperature	20 to 75°C
Ambient operating humidity	10% to 90%
Enclosure	Mounted in a panel.
Power Supply Voltage	100 to 240 VAC (wide range), 50/60 Hz
Power Consumption	120 VA max.
Output Capacity (5V)	4.6 A
Output Capacity (24V)	0.625 A (with 0.8 A service power)
Total Power Consumption	30 W
Noise immunity	2 kV on power supply line
Ambient operating atmosphere	No corrosive gases
