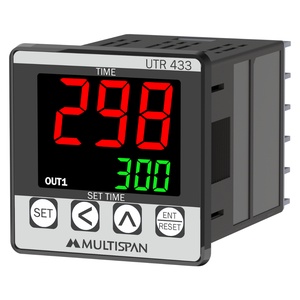

Home Products Timers Multispan UTR-433-A2-N-RG Multispan UTR-433-A2-N-RG: Programmable Timers The Multispan UTR-433 Timer offers 48x48x70(HxWxD)mm size, Upper: 3-Digit, 7-Segment, 0.80” display. Manufactured by Multispan under the Multispan Timer category, this model belongs to the DTT Series.
Brand Multispan Product Type Timer Model Number UTR-433-A2-N-RG
Multispan Programmable Timers UTR-433-A2-N-RG Technical Specifications Specification Value Panel Cutout (mm) 45 (H) x 45 (W) Auxillary Supply 100-270V AC Size 48x48x70(HxWxD)mm Display Upper: 3-Digit, 7-Segment, 0.80”
Lower: 3-Digit, 7-Segment, 0.40” Supply 100 to 270V AC, 50-60Hz Time Range Sec (9.99/99.9/999)
Min (9.59/99.9/999)
Hour (9.59/99.9/999) Output 1Relay 2C/O Reset Front Panel Reset
Terminal Reset Keys SET, SHIFT, INC, ENT/RST Operating Mode Cyclic On Timer
Cyclic Off Timer
Delay On Timer
Delay Off Timer Counting Direction Up/ Down Relay 1 nos. Relay Type 2-C/O Rating 5A, 230V AC Power consumption (VA RATING) Approx 4 VA @ 230V AC MAX Operating Temperature 0°C to 55°C Relative Humidity Upto 95% RH
(non-condensing) Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529 : 2001
