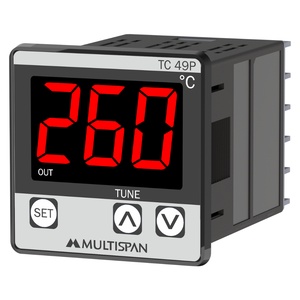

TC-49P-A2-N3-W - Multispan Temperature Controller
Multispan TC-49P-A2-N3-W Temperature Controller supports Pt-100 input, Relay or SSR output, PID control, and RS-485 communication. The TC-49P-A2-N3-W Multispan Temperature Controller belongs to the Multispan Temperature Controller category and TC Series. It features PID Auto-Tuning, IP65 front protection, Relay or SSR output, and RS-485 Modbus communication with 100-270V AC auxiliary supply.
| Brand | Multispan |
| Product Type | Temperature Controller |
| Model Number | TC-49P-A2-N3-W |
TC-49P-A2-N3-W Multispan Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Input | Pt-100 |
| Output | Relay || SSR |
| Auxillary Supply | 100-270V AC |
| Display Color | White |
| Size | 48x48x70(HxWxD)mm |
| Supply Voltage | 100 to 270V AC, 50-60Hz |
| Power Consumption (VA Rating) | 4VA @ 230V AC MAX |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| Input Range | J : 0 to 600°C K : 0 to 999°C |
| Resolution | 1°C |
| Indication Accuracy | ±1% of FSD ± 1°C |
| Display | 3-Digit, 7-Segment, 0.8” RED |
| Keys | SET, INC, DEC |
| Panel Cutout (mm) | 45 (H) x 45 (W) |
| Heating | 1. PID control with Auto-Tuning 2. ON-OFF Control |
| Relay | 1 Nos |
| Relay Type | 1C/O (NO-C-NC) |
| Rating | 10A, 230V AC / 28V DC |
| SSR Output Signal | 12V DC, 30mA DC |
| Analog Output | 4 to 20mA DC/0 to 10V DC (Factory Set) |
| Transmitter supply | 24V DC |
| Modbus Communication | RS-485 |
The TC-49P-A2-N3-W is a Multispan Temperature Controller from the TC Series used for industrial temperature monitoring and control. This TC-49P-A2-N3-W Temperature Controller accepts a Pt-100 input and supports Relay or SSR output for process regulation. It includes Pt-100 input, PID Auto-Tuning, RS-485 Modbus communication, and IP65 front protection to support reliable operation in industrial automation environments. The controller is designed for applications requiring accurate temperature measurement, stable control performance, and communication capability.
The TC-49P-A2-N3-W Temperature Controller is widely used in conveyors, packaging systems, assembly machines, heating equipment, and industrial automation panels. PID control helps maintain stable process temperatures while Relay and SSR outputs provide flexible control options. RS-485 communication allows the Temperature Controller to exchange data with PLCs, SCADA systems, and automation networks. These capabilities support process consistency, reduced temperature variation, and dependable operation across manufacturing and production facilities.
Multispan TC-49P-A2-N3-W Temperature Controller combines sensing, control, and communication functions in a compact 48x48mm enclosure. The TC-49P-A2-N3-W Temperature Controller operates on a 100-270V AC supply and delivers accurate temperature regulation with PID Auto-Tuning functionality. Multispan controllers are commonly selected for industrial automation applications where dependable temperature control, communication integration, and long-term operational stability are important requirements for maintaining production efficiency and equipment performance.
