Multispan EPM-14-E3-04 Digital Energy Meter

Multispan EPM-14-E3-04 Digital Energy Meter delivers precise three-phase energy monitoring for industrial electrical distribution and automation systems. The EPM-14-E3-04 Digital Energy Meter integrates 8-digit KWh LED display system, 4-digit KW monitoring display, 50–520V AC voltage input range, and 100A DIN CT compatibility support. It belongs to the EMP series under Multispan and is designed for industrial energy management applications.

Multispan EPM-14-E3-04
Datasheet
BrandMultispan
Product TypeDigital Energy Meter
Model NumberEPM-14-E3-04

Multispan EPM-14-E3-04 Digital Energy Meter - Technical Specifications

SpecificationValue
DisplayUPPER: 7-Seg, 8-Digit, 0.39”, RED LED Display for KWH; LOWER: 7-Seg, 4-Digit, 0.39”, GREEN LED Display for KW
Size (mm)96(H) X 96 (W) X 54 (D)
Panel Cutout92 (H) X 92 (W)
Voltage Input50 To 520V AC L-L CAT III; 30 To 300V AC L-N
Current Input50mA To 5Amp AC direct or C.T Selectable up to 6000/5 ratio
Active Power (KW)0000-9999 KW
Active Energy (KWh)0-99999999 KWH
Power Supply100 to 270V AC, 50/60Hz, Approx 4VA
OutputPulse Output: Voltage range 24V DC Max (External); Pulse Width: 10 to 500ms Selectable & With Modbus
Frequency45 To 65 Hz
Wiring System3Ø-4W
Protection LevelIP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature0°C To 50°C
Relative HumidityUpto 95% RH Non Condensing
Note2-Relay Available on Request in "EPM-14" Modbus Available on Request
Voltage Network Selection3Ø-4Wire
Voltage Input (L-N)30 To 300V AC
Voltage Input (L-L)50 To 520V AC
CurrentCT Input: 100A with DIN 100AX CT
Supply100 to 270V AC/DC

Related Products

EPM-14-E3-00EPM-14-E3-00
EPM-14-E3-02EPM-14-E3-02

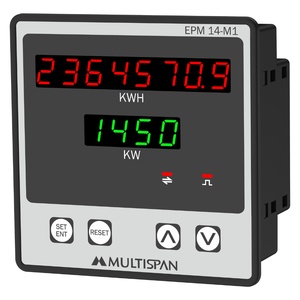

EPM-14-E3-03EPM-14-E3-03
