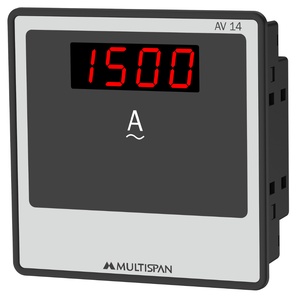

Multispan AV-14 Digital Panel Meter
Technical Specifications of Multispan Digital Panel Meter AV-14:
| Accuracy | Class 0.5 |
| Power Supply | 230V AC, 50 Hz |
Multispan AV-14 Digital Panel Meter Technical Specifications
| Specification | Value |
|---|
| Display | 4-Digit, 7-Seg 0.56”, Red LED Display |
| Size(H X W X D)mm | 96 X 96 X 43 |
| Input Current | Primary: 5 to 4000A Selectable
Secondary: 0.5 to 5A AC Direct |
| Accuracy | Class 0.5 |
| Power Supply | 230V AC, 50 Hz |
| Protection Level (As per request) | IP-65(Front side) AS per IS/IEC 60529:2001 |
| Operating Temperature | 0° To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
