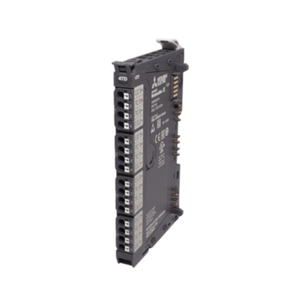

Mitsubishi NZ2FTS-60TD4 - PLC Analog Output Module
The Mitsubishi NZ2FTS-60TD4 Programmable Logic Controller includes 4 thermocouple input channels compatible with U, T, S, R, N, MV, L, K, J, E, C, and B types. Designed by Mitsubishi, it belongs to the Mitsubishi Programmable Logic Controller family under the NZ2FT Series. Operating on a 24V DC power supply with 0.03A current consumption, this compact module measures 120 mm height, 11.5 mm width, 76 mm depth, and weighs 91 g.
| Brand | Mitsubishi |
| Product Type | PLC Analog Output Module |
| Product | NZ2FTS-60TD4 |
Mitsubishi PLC Analog Output Module NZ2FTS-60TD4 Technical Specifications
| Specification | Value |
|---|---|
| Series | NZ2FT SERIES |
| Type | TEMPERATURE INPUT |
| Integrated Analogue Inputs | 4 |
| Int. Current Consumption (A) | 0,03 |
| Depth (mm) | 76 |
| Weight (kg) | 91 |
| Width (mm) | 11,5 |
| Height (mm) | 120 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Input Type | THERMOCOUPLE |
| Applicable Thermocouple Type | U, T, S, R, N, MV, L, K, J, E, C, B |
The Mitsubishi NZ2FTS-60TD4 Programmable Logic Controller is a temperature input module from the NZ2FT Series, designed for accurate thermocouple signal acquisition. It supports 4 input channels and multiple thermocouple types including K, J, T, S, and R, ensuring flexibility across industrial applications. With 24V DC operation and low 0.03A current consumption, it provides stable performance for automation systems requiring precise thermal measurement.
The Mitsubishi NZ2FTS-60TD4 PLC module is used in temperature monitoring and control across industrial automation setups such as furnaces, process plants, and equipment assembly lines. Its compatibility with a wide thermocouple range ensures dependable temperature feedback, improving efficiency and accuracy in critical process environments.
The Mitsubishi NZ2FTS-60TD4 Programmable Logic Controller upholds Mitsubishiβs standards for reliability and precision in temperature input modules. With 4 thermocouple inputs, 24V DC power, and a durable compact design, it ensures consistent temperature data acquisition for automation systems. The NZ2FT Series design guarantees stability, making it a trusted choice for industrial temperature measurement applications.
