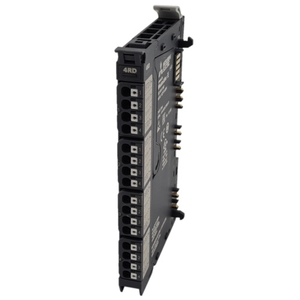

Mitsubishi NZ2FTS-60RD4 - PLC Analog Output Module
The Mitsubishi NZ2FTS-60RD4 Programmable Logic Controller features 4 RTD input channels compatible with PT100, PT1000, and NI100 sensors for precise temperature measurement. Manufactured by Mitsubishi, it belongs to the Mitsubishi Programmable Logic Controllers lineup within the NZ2FT Series. It operates on a 24V DC supply with 0.03A current consumption and features compact dimensions of 120 mm height, 11.5 mm width, and 76 mm depth.
| Brand | Mitsubishi |
| Product Type | PLC Analog Output Module |
| Product | NZ2FTS-60RD4 |
Mitsubishi PLC Analog Output Module NZ2FTS-60RD4 Technical Specifications
| Specification | Value |
|---|---|
| Series | NZ2FT SERIES |
| Type | TEMPERATURE INPUT |
| Integrated Analogue Inputs | 4 |
| Int. Current Consumption (A) | 0,03 |
| Depth (mm) | 76 |
| Weight (kg) | 0,1 |
| Width (mm) | 11,5 |
| Height (mm) | 120 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Input Type | RTD |
| Applicable RTD Type | PT500, PT200, PT1000, PT100, NI500, NI200, NI120, NI1000, NI100, CU10, 80Ω, 500Ω, 4KΩ, 40Ω, 300Ω, 2KΩ, 1KΩ, 150Ω |
The Mitsubishi NZ2FTS-60RD4 Programmable Logic Controller is a temperature input module designed for accurate signal acquisition from RTD sensors. It supports PT100, PT500, and NI1000 types, offering 4 input channels for precise industrial temperature monitoring. As part of the NZ2FT Series, it delivers high reliability and efficient data collection within Mitsubishi’s trusted automation ecosystem.
The Mitsubishi NZ2FTS-60RD4 PLC is widely used in automation setups involving thermal process control, furnaces, and environmental monitoring systems. It ensures dependable temperature readings and stable performance in manufacturing, packaging, and assembly lines. Its compact, screw-wired design and 24V DC operation make it suitable for space-constrained control panels.
The Mitsubishi NZ2FTS-60RD4 Programmable Logic Controller combines Mitsubishi’s precision engineering with versatile RTD compatibility in the NZ2FT Series. With 4 temperature input channels and low 0.03A current draw, it ensures accurate and stable temperature data acquisition for industrial automation. This model reinforces Mitsubishi’s reputation for dependable and long-lasting PLC modules built for industrial performance.
