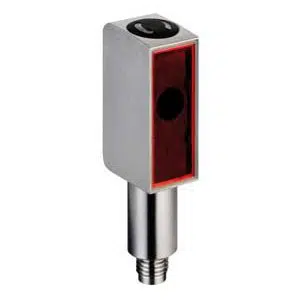

Leuze PRKL 53/6.42-S8.3 | 50114884
Technical Specifications of Leuze PRKL 53/6.42-S8.3 50114884:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 0.4 m |
| Light Source | Laser, Red |
Leuze autocollimation and HYGIENE design retro-reflective photoelectric sensors PRKL 53/6.42-S8.3 - 50114884 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles |
| Special version | Autocollimation HYGIENE design |
| Sensing Distance | 0 ... 0.4 m |
| Beam path | Focused |
| Light source | Laser, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 2,000 Hz |
| Response time | 0.25 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 3 -pin |
| Encoding | - |
| Dimension (W x H x L) | 14 mm x 35.6 mm x 20.3 mm |
| Housing material | Stainless steel |
| Metal housing | AISI 316L |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -30 ... 70 °C |
| Ambient temperature, storage | -30 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Obtain a Quote for Leuze autocollimation and HYGIENE design retro-reflective photoelectric sensors PRKL 53/6.42-S8.3 part no: 50114884 at economical prices. Specifications Overview for PRKL 53/6.42-S8.3, 50114884 reveals Cubic, Design Reflection principle, 14 mm x 35.6 mm x 20.3 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 0.4 m Sensing Distance, 3 -pin No. of pins, Stainless steel Housing material, IP 67 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze autocollimation and HYGIENE design retro-reflective photoelectric sensors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
