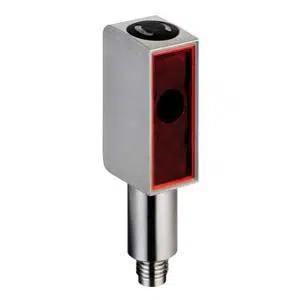

Leuze 14 mm x 35.6 mm x 20.3 mm Dimension retro-reflective sensor PRKL 53/6.22-S8 - 50107605 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
-
Special version
Autocollimation
HYGIENE design
Teach input
Sensing Distance
0 ... 2 m
Beam path
Collimated
Light source
Laser, Red
Wavelength
620 nm
Type of light spot geometry
Round
Supply voltage UB
10 ... 30 V, DC
Switching Output 1
Transistor, Push-pull
Switching principle
Light switching (PNP)/dark switching (NPN)
Switching Output 2
-
Switching principle
-
Switching frequency
2,000 Hz
Response time
0.25 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M12
Type
Male
Material
Stainless steel
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
14 mm x 35.6 mm x 20.3 mm
Housing material
Stainless steel
Metal housing
AISI 316L
Lens cover material
Plastic with scratch-resistant Indium protective coating
Housing color
Silver
Type of display
LED
Operational controls
Teach button
Ambient temperature, operation
-30 ... 55 °C
Ambient temperature, storage
-30 ... 55 °C
Degree of protection
IP 67 / IP 69K
IndMALL Automation Dealing offers Leuze 14 mm x 35.6 mm x 20.3 mm Dimension retro-reflective sensor PRKL 53/6.22-S8 part no: 50107605 at attractive prices. Key Technical Features of PRKL 53/6.22-S8, 50107605 are Cubic, Design Reflection principle, 14 mm x 35.6 mm x 20.3 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 2 m Sensing Distance, 4 -pin No. of pins, Stainless steel Housing material, IP 67 / IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 14 mm x 35.6 mm x 20.3 mm Dimension retro-reflective sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
