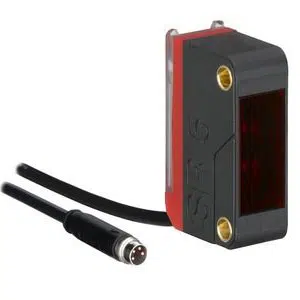

Leuze PRK5B.D/4X-200-M8 | 50150689
Technical Specifications of Leuze PRK5B.D/4X-200-M8 50150689:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze 1 ms response time and 300 ms readiness delay retro-reflective sensor PRK5B.D/4X-200-M8 - 50150689 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | Detection of stretch-wrapped objects |
Special version | - |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 645 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, PNP |
Switching principle | Dark switching (light switching by reversing polarity of UB) |
Switching Output 2 | - |
Switching principle | - |
Switching frequency | 500 Hz |
Response time | 1 ms |
Function | Signal OUT Voltage supply |
Type of connection | Cable with connector |
Cable length | 200 mm |
Sheathing material | PVC |
Cable color | Black |
Number of conductors | 3 -wire |
Wire cross section | 0.14 mm² |
Thread size | M8 |
Type | Male |
Material | Plastic |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
Housing material | Plastic |
Stainless steel housing | PC-ABS |
Lens cover material | Plastic |
Housing color | Black Red |
Type of display | LED |
Operational controls | - |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 1 ms response time and 300 ms readiness delay retro-reflective sensor PRK5B.D/4X-200-M8 part no: 50150689 at attractive prices. Technical Specs Summary of PRK5B.D/4X-200-M8, 50150689 includes Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching
(light switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 1 ms response time and 300 ms readiness delay retro-reflective sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
