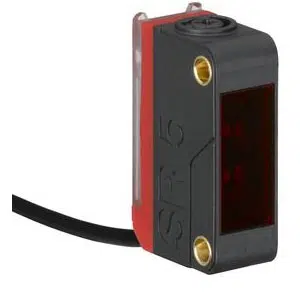

Leuze PRK5B.D/4 | 50146110
Technical Specifications of Leuze PRK5B.D/4 50146110:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.04 ... 4 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze 3 -wire, 2,000 mm Cable length retro-reflective photoelectric sensor PRK5B.D/4 - 50146110 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of stretch-wrapped objects |
| Special version | - |
| Sensing Distance | 0.04 ... 4 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mm² |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Mail us for Leuze 3 -wire, 2,000 mm Cable length retro-reflective photoelectric sensor PRK5B.D/4 part no: 50146110 with budget-friendly prices. Technical Details of PRK5B.D/4, 50146110 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching
(dark switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.04 ... 4 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 3 -wire, 2,000 mm Cable length retro-reflective photoelectric sensor. Elevate Your Project with a Quote for your requirement of Leuze 3 -wire, 2,000 mm Cable length retro-reflective photoelectric sensor. Rest assured, our pricing and support outshine other Suppliers.
