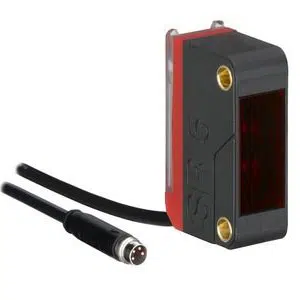

Leuze PRK5B/4X-200-M8.1 | 50145256
Technical Specifications of Leuze PRK5B/4X-200-M8.1 50145256:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze Snap-in, M8 Thread size retro-reflective photoelectric sensor PRK5B/4X-200-M8.1 - 50145256 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching (light switching by reversing polarity of UB) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.2 mm² |
| Thread size | Snap-in, M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Stainless steel housing | PC-ABS |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze Snap-in, M8 Thread size retro-reflective photoelectric sensor PRK5B/4X-200-M8.1 part no: 50145256 at affordable rates. Core System Specifications of PRK5B/4X-200-M8.1, 50145256 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching
(light switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze Snap-in, M8 Thread size retro-reflective photoelectric sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
