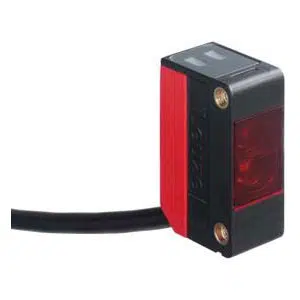

Leuze PRK5/4 | 50132421
Technical Specifications of Leuze PRK5/4 50132421:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze 0.02–6 m reflector TK(S) 100x100 retro-reflective sensor PRK5/4 - 50132421 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.2 mm² |
| Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL Offers Leuze 0.02–6 m reflector TK(S) 100x100 retro-reflective sensor PRK5/4 part no: 50132421 at the lowest pricing. Technical Specs Summary of PRK5/4, 50132421 includes Cubic, Design Reflection principle, 14 mm x 32.5 mm x 20.2 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.02–6 m reflector TK(S) 100x100 retro-reflective sensor. Now's the Time to Secure a Quote for your requirement of Leuze 0.02–6 m reflector TK(S) 100x100 retro-reflective sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
