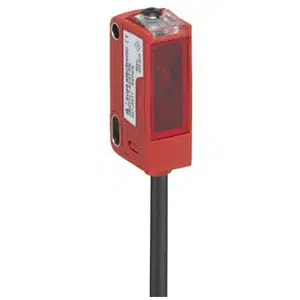

Leuze PRK3C.BT3/4T | 50133657
Technical Specifications of Leuze PRK3C.BT3/4T 50133657:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 3 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze 0.2 mm² Wire cross and 4 -wire conductors retro-reflective photoelectric sensor PRK3C.BT3/4T - 50133657 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 3 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 635 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Get A Quote for Leuze 0.2 mm² Wire cross and 4 -wire conductors retro-reflective photoelectric sensor PRK3C.BT3/4T part no: 50133657 at the best price. Here are the brief Technical Specifications of PRK3C.BT3/4T, PRK3C.BT3/4T are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 3 m, With reflector TK(S) 100x100 Sensing Distance, 4 -wire Number of conductors, Plastic Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze 0.2 mm² Wire cross and 4 -wire conductors retro-reflective photoelectric sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
