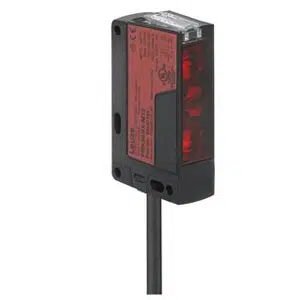

Leuze PRK36.D/2 | 50147125
Technical Specifications of Leuze PRK36.D/2 50147125:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.3 ... 11 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze 20.5 mm x 76.3 mm x 44 mm Dimension retro-reflective sensor PRK36.D/2 - 50147125 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of stretch-wrapped objects |
| Special version | - |
| Sensing Distance | 0.3 ... 11 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 300 Hz |
| Response time | 1.66 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mm² |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Black |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL provides Leuze 20.5 mm x 76.3 mm x 44 mm Dimension retro-reflective sensor PRK36.D/2 part no: 50147125 at the lowest pricing. In-depth Technical Analysis of PRK36.D/2, 50147125 include Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.3 ... 11 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 20.5 mm x 76.3 mm x 44 mm Dimension retro-reflective sensor. Capture the Best Deal with a Quote for your requirement of Leuze 20.5 mm x 76.3 mm x 44 mm Dimension retro-reflective sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
