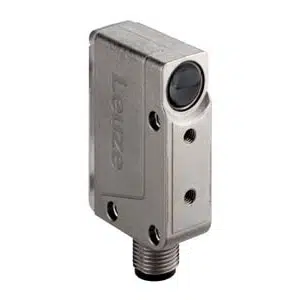

Leuze PRK18B.TT3/LP-M12 | 50121230
Technical Specifications of Leuze PRK18B.TT3/LP-M12 50121230:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 3 m |
| Light Source | LED, Red |
Leuze IO-Link Interface retro-reflective photoelectric sensors PRK18B.TT3/LP-M12 - 50121230 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes |
| Special version | Autocollimation Tracking function |
| Sensing Distance | 0 ... 3 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 47 mm x 32.5 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
IndMALL Automation Dealing offers Leuze IO-Link Interface retro-reflective photoelectric sensors PRK18B.TT3/LP-M12 part no: 50121230 at attractive prices. Key Technical Features of PRK18B.TT3/LP-M12, 50121230 are Cubic, Design Reflection principle, 15 mm x 47 mm x 32.5 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 3 m Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze IO-Link Interface retro-reflective photoelectric sensors. We excel in offering more cost-effective and supportive solutions than other Competitors.
