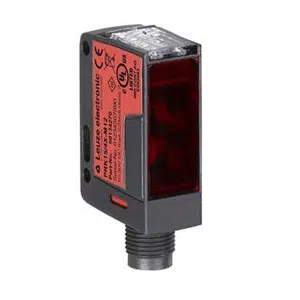

Leuze retro-reflective photoelectric sensors with one outputs and M12 connection PRK15.D1/PX-M12 - 50137466 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
Detection of stretch-wrapped objects
Special version
-
Sensing Distance
0.07 ... 6 m, With reflector TK(S) 100x100
Beam path
-
Light source
LED, Red
Wavelength
640 nm
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Dark switching
Switching Output 2
-
Switching principle
-
Switching frequency
500 Hz
Response time
1 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M12
Type
Male
Material
Plastic
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
15 mm x 42.7 mm x 30 mm
Housing material
Plastic
Metal housing
ABS
Lens cover material
Plastic
Housing color
Black
Type of display
LED
Operational controls
270° potentiometer
Ambient temperature, operation
-40 ... 55 °C
Ambient temperature, storage
-40 ... 70 °C
Degree of protection
IP 67 IP 69K
