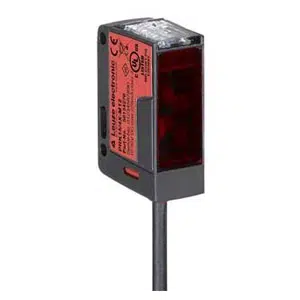

Leuze PRK15.D/P Photoelectric Sensor
The Leuze PRK15.D/P Photoelectric Sensor (Part No: 50137463 ) offers a Cubic design, Transistor, PNP output, PUR Cable 3 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK15.D/P |
Leuze PRK15.D/P Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of stretch-wrapped objects |
| Special version | - |
| Sensing Distance | 0.07 ... 6 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mm² |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Operational controls | 270° potentiometer |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL provides Leuze Black Cable, 0.14 mm² retro-reflective photoelectric sensor PRK15.D/P part no: 50137463 at the lowest pricing. In-depth Technical Analysis of PRK15.D/P, 50137463 include Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.07 ... 6 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Black Cable, 0.14 mm² retro-reflective photoelectric sensor. Capture the Best Deal with a Quote for your requirement of Leuze Black Cable, 0.14 mm² retro-reflective photoelectric sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
