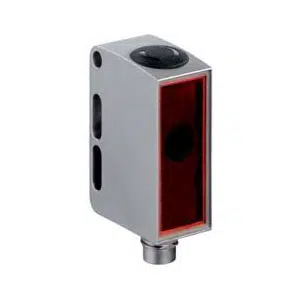

Leuze PRK 55/6.42,200-S12 Photoelectric Sensor
The Leuze PRK 55/6.42,200-S12 Photoelectric Sensor (Part No: 50112477 ) offers a Cubic design, Transistor, Push-pull output, PUR Cable with connector. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK 55/6.42,200-S12 |
Leuze PRK 55/6.42,200-S12 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles |
| Special version | All stainless steel housing Autocollimation Teach input |
| Sensing Distance | 0 ... 3 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Housing material | Stainless steel |
| Stainless steel housing | AISI 316L |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -30 ... 55 °C |
| Ambient temperature, storage | -30 ... 55 °C |
| Degree of protection | IP 67 / IP 69K |
Get A Quote for Leuze all stainless steel housing, teach input, and autocollimation retro-reflective sensor PRK 55/6.42,200-S12 part no: 50112477 at the best price. Here are the brief Technical Specifications of PRK 55/6.42,200-S12, 50112477 areCubic, Design Reflection principle, 14 mm x 35.5 mm x 25 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 3 m Sensing Distance, 4 -pin No. of pins, Stainless steel Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze all stainless steel housing, teach input, and autocollimation retro-reflective sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
