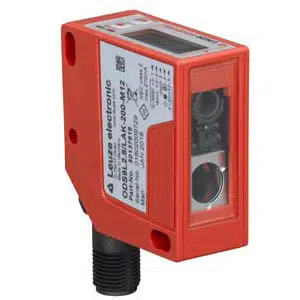

ODS9L2.8/LAK-650-M12 | 50137817 - Leuze Activation Input Distance Sensor
Technical Specifications of Leuze Activation Input Distance Sensor ODS9L2.8/LAK-650-M12:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 21 mm x 50 mm x 50 mm |
| Switching Output 1 | Transistor, Push-pull |
| Switching Output 2 | |
| Measurement range | 50 ... 650 mm |
Leuze Activation Input Distance Sensor ODS9L2.8/LAK-650-M12, 50137817 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 21 mm x 50 mm x 50 mm |
| Switching Output 1 | Transistor, Push-pull |
| Switching Output 2 | |
| Measurement range | 50 ... 650 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog output type | Configurable, factory setting: current |
| Connection type | Connector, Turning, 90° |
| Thread size | M12 |
| No. of pins | 5 -pin |
| Housing material | Plastic |
| Lens cover material | Glass |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze Activation Input Distance Sensor, ODS9L2.8/LAK-650-M12, 50137817 with budget-friendly prices. Specifications Overview for ODS9L2.8/LAK-650-M12 reveals Glass, Plastic, 5 -pin, M12, Connector, Turning, 90°, Configurable, factory setting: current, 18 ... 30 V, DC & Laser, Red. And It Comes With 50 ... 650 mm, Transistor, Push-pull & 21 mm x 50 mm x 50 mm. Customize Your Experience with a Quote for your requirement of Leuze Activation Input Distance Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
