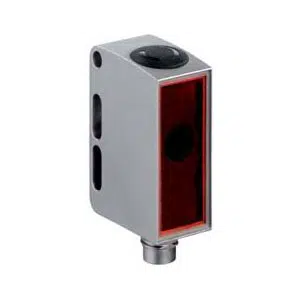

Leuze LSSR 55.8-S8 Photoelectric Sensor
The Leuze LSSR 55.8-S8 Photoelectric Sensor (Part No: 50108715 ) offers a Throughbeam principle, - distance, M8 Connector 4-pin .. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LSSR 3 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LSSR 55.8-S8 |
Leuze LSSR 55.8-S8 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 55 Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 8.5 m; Guaranteed operating range |
| Operating range limit | 0 ... 10 m; Typical operating range |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Light spot size [at sensor distance] | - |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 18 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Housing material | Stainless steel: AISI 316L |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -30 ... 55 °C Storage: -30 ... 55 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 40 g |
Mail us for Leuze AISI 316L Stainless Steel Sensor LSSR 55.8-S8 part no: 50108715 with budget-friendly prices. Technical Details of LSSR 55.8-S8, 50108715 are 55 series, Transmitter device, 0... 8.5 m; Guaranteed operating range operating range, 0 ... 10 m; Typical operating range operating range limit, Divergent beam path, LED, Red light source, 620 nm wavelength, Round light spot geometry, 10 ... 30 V, DC power supply, M8 Connector, 4-pin, 14 mm x 35.5 mm x 25 mm dimensions, Silver housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze AISI 316L Stainless Steel Sensor. Rest assured, our pricing and support outshine other Suppliers.
