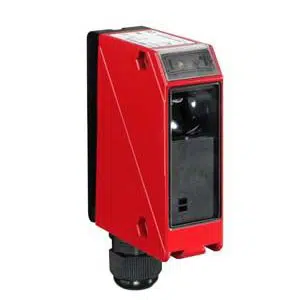

Leuze LSS 96K-1350-26 Photoelectric Sensor
The Leuze LSS 96K-1350-26 Photoelectric Sensor (Part No: 50025253 ) offers a Throughbeam principle, 0... 65 m operating range, Terminal 2-pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LSS 96K-1350-26 |
Leuze LSS 96K-1350-26 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 96 |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 65 m |
| Light source | LED, Infrared |
| Power Supply | 20 ... 230 V, AC/DC |
| Open-circuit current | 0 ... 50 mA |
| Type of Connection | Terminal |
| Number of conductors or Pins | 2-pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic: PC |
| Lens cover material | Plastic |
| Note | Housing part used contains perfluorobutanesulfonic acid (PFBS) |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 55 Β°C |
| Degree of protection | IP 67 |
| Net weight | 150 g |
Reach Us by Email for Leuze 20 to 230 V Supply voltage UB Sensor LSS 96K-1350-26 part no: 50025253 at Discounted Rates. Key Technical Features of LSS 96K-1350-26, 50025253 are 96 series, Throughbeam, Transmitter device, 0... 65 m operating range, LED, Infrared light source, 20 ... 230 V, AC/DC power supply, 0 ... 50 mA current, Terminal, 2-pin, 30 mm x 90 mm x 70 mm dimensions, LED display, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 20 to 230 V Supply voltage UB Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
