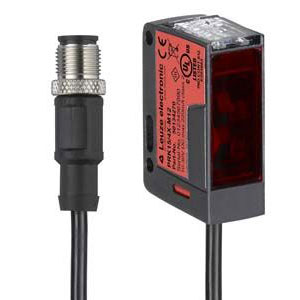

Leuze LS15/XX-200-M12 Photoelectric Sensor
The Leuze LS15/XX-200-M12 Photoelectric Sensor (Part No: 50138587 ) offers a Throughbeam principle, 0 ... 30 m operating range, PUR 200 mm cable with M12 connector 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS15/XX-200-M12 |
Leuze LS15/XX-200-M12 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 15 Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 30 m |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | PUR 200 mm cable with M12 connector |
| Number of conductors or Pins | 4 -pin |
| Dimension | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 15 g |
Talk to Our Engineer for Leuze 640nm Wavelength Throughbeam Sensor LS15/XX-200-M12 part no: 50138587 with special pricing. Detailed Specifications of LS15/XX-200-M12, 50138587 include 15 series, Throughbeam, Transmitter device, 0 ... 30 m operating range, LED, Red light source, 640 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 20 mA current, PUR 200 mm cable with M12 connector, 4 -pin, 15 mm x 42.7 mm x 30 mm dimensions, Black housing color, LED display, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze 640nm Wavelength Throughbeam Sensor. Our commitment to better pricing and exceptional support sets us apart from other Dealers & Distributors.
