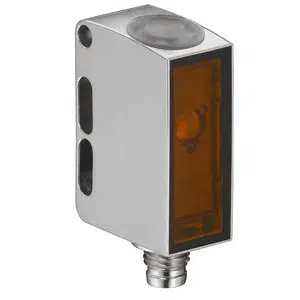

Leuze LE55C/LG-M8 Photoelectric Sensor
The Leuze LE55C/LG-M8 Photoelectric Sensor (Part No: 50148180 ) offers a 0.05 ... 8.5 m operating range, Transistor, Push-pull output, M8 Connector 4 -pin
. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE55C/LG-M8 |
Leuze LE55C/LG-M8 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 55C Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0.05 ... 8.5 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 15 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, Push-pull |
| Switching Principle | Light switching (PNP)/dark switching (NPN)/Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature | operation -40 ... 70 °C storage -40 ... 70 °C |
| Degree of protection | IP 67, IP 68K, IP 69K |
| Net weight | 42 g |
IndMALL Automation Dealing offers Leuze 15 mA Open Circuit Current Receiver Sensor LE55C/LG-M8 part no: 50148180 at unbeatable prices. The Main Technical Parameters of LE55C/LG-M8, include 55C series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, Push-pull output, Light switching (PNP)/dark switching (NPN)/Dark switching (PNP)/light switching (NPN), 1,000 Hz frequency, M8 Connector, 4 -pin
, 14 mm x 35.4 mm x 25 mm dimensions, Silver housing color, LED
display, IP 67, IP 68K, IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 15 mA Open Circuit Current Receiver Sensor.
