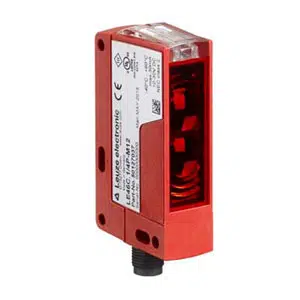

Leuze 0.5-120 m Operating Range Receiver Sensor LE46C/2N-M12, 50127036 Technical Specifications:
Specification
Value
Series
46C
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0.5 ... 120 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
2 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Light switching/Dark switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
M12 Connector
Number of conductors or Pins
4-pin
Dimension (W x H x L)
20.5 mm x 76.3 mm x 44 mm
Housing material
Plastic: PC-PBT
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67, IP 69K
Net weight
60 g
Obtain a Quote for Leuze 0.5-120 m Operating Range Receiver Sensor LE46C/2N-M12 part no: 50127036 at economical prices. Specifications Overview for LE46C/2N-M12, reveals 46C
series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 2 Piece(s) digital switching output, Transistor, NPN output, Light switching/Dark switching, 500 Hz
frequency, M12 Connector, 4-pin, 20.5 mm x 76.3 mm x 44 mm dimensions, Red housing color, LED
display, IP 67, IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 0.5-120 m Operating Range Receiver Sensor.
