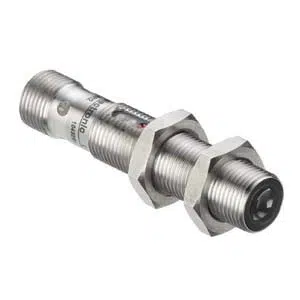

Leuze 200 mA Switching Current Through Beam Receiver Sensor LE412BL2.1/NX-M12, 50140162 Technical Specifications:
Specification
Value
Series
412B
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 50 m
Power Supply
10 ... 36 V, DC, Incl. residual ripple
Open-circuit current
0 ... 10 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Dark switching
Switching frequency
5,000 Hz
Response time
0.1 ms
Readiness delay
20 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
M12 Connector
Number of conductors or Pins
4 -pin
Dimension (W x H x L)
12 mm x 60 mm
Housing material
Stainless steel
Lens cover material
Glass
Housing color
Silver
Type of display
LED
Ambient temperature
operation -10 ... 50 °C
Degree of protection
IP 67
Net weight
32 g
IndMALL Dealing in Leuze 200 mA Switching Current Through Beam Receiver Sensor LE412BL2.1/NX-M12 part no: 50140162 at the best rates. Operational Specifications for LE412BL2.1/NX-M12, are 412B series, Throughbeam principle
, Receiver device, 10 ... 36 V, DC, Incl. residual ripple power supply, 0 ... 10 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Dark switching, 5,000 Hz frequency, M12 Connector, 4 -pin, 12 mm x 60 mm
dimensions, Silver housing color, LED
display, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 200 mA Switching Current Through Beam Receiver Sensor.
