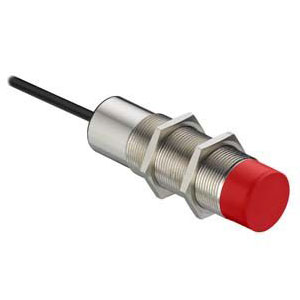

LCS-2M30B-N30NNC-K020V: 50136620 - Leuze M30 Normally Closed Sensor
Technical Specifications of Leuze LCS-2M30B-N30NNC-K020V 50136620:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 2 ... 30 mm |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze M30 Normally Closed Sensor LCS-2M30B-N30NNC-K020V, 50136620 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 2 ... 30 mm |
| Assured switching distance | 24.3 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze M30 Normally Closed Sensor LCS-2M30B-N30NNC-K020V part no: 50136620 at economical prices. Specifications Overview for LCS-2M30B-N30NNC-K020V, 50136620 reveals LCS-2 series, 2 ... 30 mm sensing distance, 24.3 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NC (normally closed) output, 100 Hz switching frequency, PVC,Cable 2,000 mm Length, 3 -wire, Cylindrical, 30 mm x 85 mm dimension, Non-embedded, Metal, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze M30 Normally Closed Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors..
