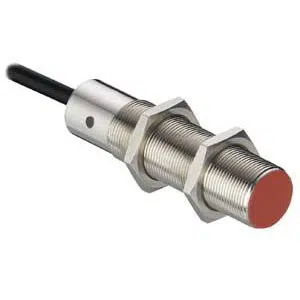

LCS-2M12B-F03PNO-K020V: 50136521 - Leuze 55mm Length Capacitive Sensor
Technical Specifications of Leuze LCS-2M12B-F03PNO-K020V 50136521:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 1 ... 3 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 55mm Length Capacitive Sensor LCS-2M12B-F03PNO-K020V, 50136521 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 1 ... 3 mm |
| Assured switching distance | 2.4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 55 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze 55mm Length Capacitive Sensor LCS-2M12B-F03PNO-K020V part no: 50136521 with budget-friendly prices. The Main Technical Parameters of LCS-2M12B-F03PNO-K020V, 50136521 include LCS-2 series, 1 ... 3 mm sensing distance, 2.4 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NO (normally open) output, 100 Hz switching frequency, PVC,Cable 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 55 mm dimension, Embedded, Metal, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 55mm Length Capacitive Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
