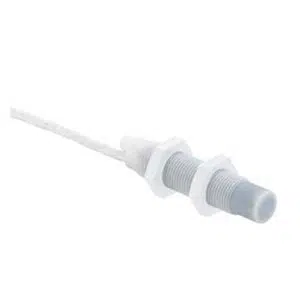

LCS-1M30T-N30NNC-K020T: 50135806 - Leuze M30 NPN NC Capacitive Sensor
Technical Specifications of Leuze LCS-1M30T-N30NNC-K020T 50135806:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 2 ... 30 mm |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze M30 NPN NC Capacitive Sensor LCS-1M30T-N30NNC-K020T, 50135806 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 2 ... 30 mm |
| Assured switching distance | 30 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 18 mA |
| Rated operating current | 300 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PTFE,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 72 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Teflon (PTFE) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -30 ... 70 °C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze M30 NPN NC Capacitive Sensor LCS-1M30T-N30NNC-K020T part no: 50135806 with exclusive offers. Core System Specifications of LCS-1M30T-N30NNC-K020T, 50135806 areLCS-1 series, 2 ... 30 mm sensing distance, 30 mm switching distance, 10 ... 30 V, DC power supply, 300 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NC (normally closed) output, 100 Hz switching frequency, PTFE,Cable 2,000 mm Length, 3 -wire, Cylindrical, 30 mm x 72 mm dimension, Non-embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze M30 NPN NC Capacitive Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
