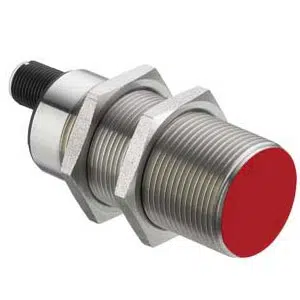

LCS-1M30M-N25PNO-M12: 50135787 - Leuze M30 Capacitive Sensor
Technical Specifications of Leuze LCS-1M30M-N25PNO-M12 50135787:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 1 ... 25 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze M30 Capacitive Sensor LCS-1M30M-N25PNO-M12, 50135787 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 1 ... 25 mm |
| Assured switching distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 78.5 mm |
| Type of installation | Non-embedded |
| Housing material | Metal Stainless steel |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze M30 Capacitive Sensor LCS-1M30M-N25PNO-M12 part no: 50135787 at attractive prices. Engineering Specifications of LCS-1M30M-N25PNO-M12, 50135787 detail LCS-1 series, 1 ... 25 mm sensing distance, 25 mm switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NO (normally open) output, 100 Hz switching frequency, M12 Connector, 4 -pin, Cylindrical, 30 mm x 78.5 mm dimension, Non-embedded, Metal Stainless steel, 2 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze M30 Capacitive Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
