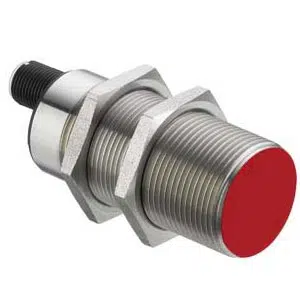

LCS-1M30M-N25NNC-K020P: 50135794 - Leuze 30mm NC Capacitive Sensor
Technical Specifications of Leuze LCS-1M30M-N25NNC-K020P 50135794:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 1 ... 25 mm |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze 30mm NC Capacitive Sensor LCS-1M30M-N25NNC-K020P, 50135794 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 1 ... 25 mm |
| Assured switching distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 66.5 mm |
| Type of installation | Non-embedded |
| Housing material | Metal Stainless steel |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
Mail us for Leuze 30mm NC Capacitive Sensor LCS-1M30M-N25NNC-K020P part no: 50135794 with budget-friendly prices. Technical Details of LCS-1M30M-N25NNC-K020P, 50135794 are LCS-1 series, 1 ... 25 mm sensing distance, 25 mm switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NC (normally closed) output, 100 Hz switching frequency, PUR,Cable 2,000 mm Length, 3 -wire, Cylindrical, 30 mm x 66.5 mm dimension, Non-embedded, Metal Stainless steel, 2 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 30mm NC Capacitive Sensor. Rest assured, our pricing and support outshine other Suppliers.
