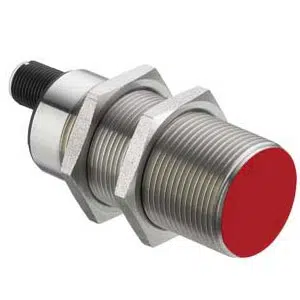

Leuze LCS-1M30M-F15NNO-M12 Proximity Sensor
The Leuze LCS-1M30M-F15NNO-M12 proximity sensor offers 2–15 mm sensing distance, NPN normally open output, and 10–30 V DC supply. This Leuze 15mm NO Capacitive Sensor from Leuze is part of the Proximity Sensor category and belongs to the LCS-1 Series. It uses an M30 stainless steel cylindrical housing, M12 connector interface, adjustable sensitivity via multiturn potentiometer, IP67 protection, and embedded installation.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30M-F15NNO-M12 |
Leuze LCS-1M30M-F15NNO-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 79 mm |
| Type of installation | Embedded |
| Housing material | Metal, Stainless steel |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 105 g |
The LCS-1M30M-F15NNO-M12 Leuze 15mm NO Capacitive Sensor is a proximity sensor designed for capacitive detection tasks in industrial automation. The LCS-1M30M-F15NNO-M12 supports a 2–15 mm sensing distance, NPN transistor output, normally open switching, and IP67 protection. It belongs to the Leuze LCS series and is intended for embedded mounting in automation systems.
This proximity sensor is applied in conveyors, packaging machines, automated assembly lines, and material handling equipment. The M30 threaded stainless steel housing enables stable mechanical installation, while the M12 connector ensures reliable electrical connection. Adjustable sensitivity supports consistent detection of materials across varying operating conditions.
The Leuze LCS-1M30M-F15NNO-M12 proximity sensor provides defined electrical behavior, mechanical robustness, and environmental resistance for continuous industrial use. Its voltage range and switching characteristics support predictable system integration. As part of the Leuze LCS series, this model reflects reliable sensor design focused on repeatable performance and long-term operational stability.
