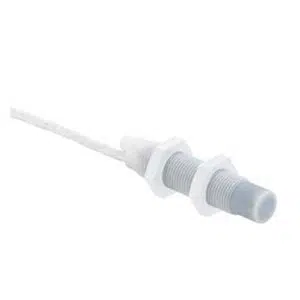

LCS-1M18T-N15PNO-K020T: 50135783 - Leuze 15 mA Open-circuit Current
Technical Specifications of Leuze LCS-1M18T-N15PNO-K020T 50135783:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 2 ... 15 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 15 mA Open-circuit Current Sensor LCS-1M18T-N15PNO-K020T, 50135783 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 300 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PTFE,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 73 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Teflon (PTFE) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -30 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL Dealling Leuze 15 mA Open-circuit Current Sensor LCS-1M18T-N15PNO-K020T part no: 50135783 with the special pricing. Technical Specs Summary of LCS-1M18T-N15PNO-K020T, 50135783 feature LCS-1 series, 2 ... 15 mm sensing distance, 15 mm switching distance, 10 ... 30 V, DC power supply, 300 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NO (normally open) output, 100 Hz switching frequency, PTFE,Cable 2,000 mm Length, 3 -wire, Cylindrical, 18 mm x 73 mm dimension, Non-embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 15 mA Open-circuit Current Sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
