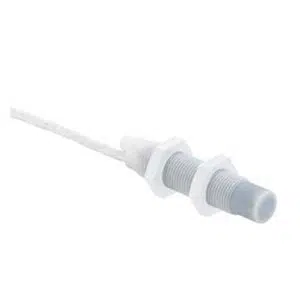

LCS-1M18T-N15PNC-K020T: 50135784 - Leuze 73mm Length Capacitive Sensor
Technical Specifications of Leuze LCS-1M18T-N15PNC-K020T 50135784:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 2 ... 15 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze 73mm Length Capacitive Sensor LCS-1M18T-N15PNC-K020T, 50135784 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 300 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PTFE,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 73 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Teflon (PTFE) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -30 ... 70 °C |
| Degree of protection | IP 67 |
Send Us an Email for Leuze 73mm Length Capacitive Sensor LCS-1M18T-N15PNC-K020T part no: 50135784 with budget-friendly prices. Technical Attributes of LCS-1M18T-N15PNC-K020T, 50135784 includes LCS-1 series, 2 ... 15 mm sensing distance, 15 mm switching distance, 10 ... 30 V, DC power supply, 300 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NC (normally closed) output, 100 Hz switching frequency, PTFE,Cable 2,000 mm Length, 3 -wire, Cylindrical, 18 mm x 73 mm dimension, Non-embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Now's the Time to Secure Quote for your requirement of Leuze 73mm Length Capacitive Sensor. Rest assured, our pricing and support outshine other Suppliers.
