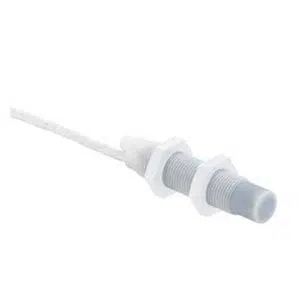

LCS-1M12T-N08NNC-K020T: 50135766 - Leuze 53mm Length Capacitive Sensor
Technical Specifications of Leuze LCS-1M12T-N08NNC-K020T 50135766:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 1 ... 8 mm |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze 53mm Length Capacitive Sensor LCS-1M12T-N08NNC-K020T, 50135766 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 1 ... 8 mm |
| Assured switching distance | 8 mm |
| Supply Voltage | 12 ... 35 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PTFE,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 53 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Teflon (PTFE) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -30 ... 70 °C |
| Degree of protection | IP 65 |
Reach Us by Email for Leuze 53mm Length Capacitive Sensor LCS-1M12T-N08NNC-K020T part no: 50135766at the best rates. Technical Configuration of LCS-1M12T-N08NNC-K020T, 50135766 are LCS-1 series, 1 ... 8 mm sensing distance, 8 mm switching distance, 12 ... 35 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NC (normally closed) output, 100 Hz switching frequency, PTFE,Cable 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 53 mm dimension, Non-embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 65 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 53mm Length Capacitive Sensor. We're committed to offering more favorable pricing and more responsive support than other Distributors.
