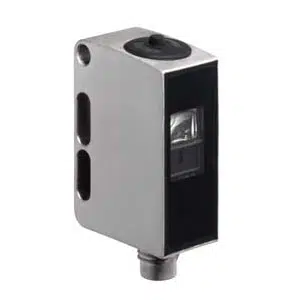

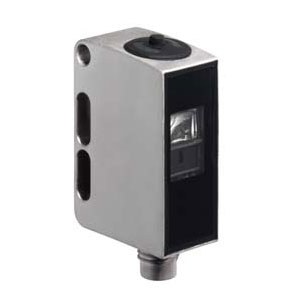

Leuze KRTM 55/4.1221,200-S12 | 50110615
Technical Specifications of Leuze KRTM 55/4.1221,200-S12 50110615:
| Spec | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Operating Range | 13 mm ± 2 mm |
| Light Source | LED, RGB |
Leuze IO Link Interface Contrast Sensor KRTM 55/4.1221,200-S12, 50110615 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Special version | Teach input Time function |
| Operating range | 13 mm ± 2 mm |
| Beam path | Focused |
| Light Source | LED, RGB |
| Light spot size [at sensor distance] | 1.5 mm x 6.5 mm |
| Light spot orientation | Vertical |
| Type of light spot geometry | Rectangular |
| Light beam exit | Front |
| Wavelength | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, PNP |
| Switching principle | Light/dark switchable |
| Switching frequency | 10,000 Hz |
| Response time | - |
| Con:1 Function | - |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Number of conductors | - |
| Thread size | M12 |
| Type | - |
| Material | Stainless steel |
| No. of pins | 4-pin |
| Housing material | Stainless steel |
| Housing color | - |
| Type of fastening | - |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -30 ... 55 °C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 IP 69K |
IndMALL Automation Dealing Leuze IO Link Interface Contrast Sensor KRTM 55/4.1221,200-S12 part no: 50110615 at economical Choices. Detailed Specifications of KRTM 55/4.1221,200-S12 feature Cubic Design, 14 mm x 35.5 mm x 25 mm Dimensions, 13 mm ± 2 mm Operating Range, LED, RGB Light Source, 1.5 mm x 6.5 mm Light Spot Size, 10 ... 30 V, DC Supply Voltage , Transistor, PNP switching output, 10,000 Hz Switching Frequency, Cable with connector, M12, 4-pin, LED display, Teach button Operational Controls, Stainless steelHousing Material, IP 67 IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze IO Link Interface Contrast Sensor.
