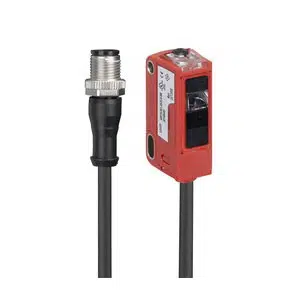

Leuze KRT3CL1.3S2/4T-200-M12 | 50148504
Technical Specifications of Leuze KRT3CL1.3S2/4T-200-M12 50148504:
| Spec | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Operating Range | 60 mm ± 20 mm |
| Light Source | Laser, Red |
Leuze 60 mm Operating Range Contrast Sensor KRT3CL1.3S2/4T-200-M12, 50148504 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Special version | Teach input Time function |
| Operating range | 60 mm ± 20 mm |
| Beam path | Focused |
| Light Source | Laser, Red |
| Light spot size [at sensor distance] | 0.5 mm x 1 mm [60 mm] |
| Light spot orientation | Vertical |
| Type of light spot geometry | Oval |
| Light beam exit | Front |
| Wavelength | 655 nm |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 4,000 Hz |
| Response time | 0.125 ms |
| Con:1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Number of conductors | - |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Housing material | Plastic |
| Housing color | Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 55 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 IP 69K |
Please speak to our Technical Engineer for Leuze 60 mm Operating Range Contrast Sensor KRT3CL1.3S2/4T-200-M12 part no: 50148504 at attractive prices. Technical Specs Summary of KRT3CL1.3S2/4T-200-M12, feature Cubic Design, 11.4 mm x 34.2 mm x 18.3 mm Dimensions, 60 mm ± 20 mm Operating Range, Laser, Red Light Source, 0.5 mm x 1 mm [60 mm] Light Spot Size, 655 nm wavelength, 12 ... 30 V, DC, Incl. residual ripple Supply Voltage , Transistor, PNP switching output, 4,000 Hz Switching Frequency, Cable with connector, M12 , 4 -pin , LED display, Teach button Operational Controls, Plastic Housing Material, Red Housing Color, IP 67 IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 60 mm Operating Range Contrast Sensor.
