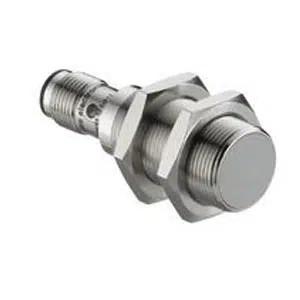

Leuze ISS 218MM/44-8E0-S12 Proximity Sensor
The Leuze ISS 218MM/44-8E0-S12 Proximity Sensor (Part No: ) offers a 8 mm sensing distance, 10 ... 36 V, DC supply voltage, Transistor, PNP NO contact – Antivalent output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 218MM/44-8E0-S12 |
Leuze ISS 218MM/44-8E0-S12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 218 Series |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 36 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.05 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 1,500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 54 mm |
| Type of installation | Embedded |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Gray Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Operation: -30 ... 80 °C |
| Degree of protection | IP 67 |
Call us for Leuze 10 to 36VDC Cylindrical Switch ISS 218MM/44-8E0-S12 part no: 50141483 at the best rates. Technical Attributes of ISS 218MM/44-8E0-S12, 50141483 are218 series, 8 mm Sensing, 10 ... 36 V, DC power supply, 2 Piece(s) digital switching output, 200 mA current, Transistor, PNP , NO contact – Antivalent output 1, Transistor, PNP , NO contact – Antivalent output 2, 1,500 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 54 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Gray Silver color, IP 67 degree of protection.Unlock Exclusive Pricing with a Quote for your requirement of Leuze 10 to 36VDC Cylindrical Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
