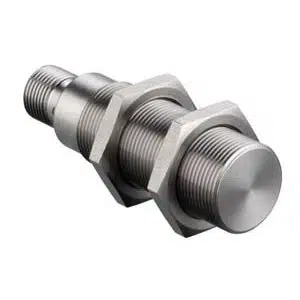

Leuze IS 218FM/2NO.5-5E0-S12 Proximity Sensor
The Leuze IS 218FM/2NO.5-5E0-S12 Proximity Sensor (Part No: ) offers a 5 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 218FM/2NO.5-5E0-S12 |
Leuze IS 218FM/2NO.5-5E0-S12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 218 Series |
| Sensing Distance | 5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 63.5 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 304 |
| Housing color | Silver |
| Standard measuring plate | 18 x 18 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C |
| Degree of protection | IP 68 IP 69K |
Ask for the Pricing of Leuze 4mm Operating Range Switch IS 218FM/2NO.5-5E0-S12 part no: 50128171 at unbeatable prices. Detailed Specifications of IS 218FM/2NO.5-5E0-S12, 50128171 feature 218 series, 5 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, NPN, NO (normally open) output, 100 Hz frequency, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 63.5 mm dimentions, Embedded, Stainless steel, AISI 304, 1 Piece(s) LEDs, Silver color, IP 68 IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 4mm Operating Range Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
