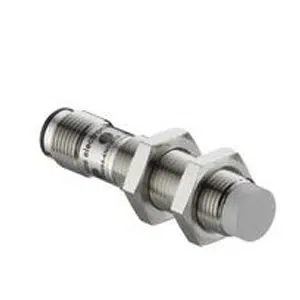

Leuze IS 212FM/2NO.5-3E0-S12 Proximity Sensor
The Leuze IS 212FM/2NO.5-3E0-S12 Proximity Sensor (Part No: ) offers a 3 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 212FM/2NO.5-3E0-S12 |
Leuze IS 212FM/2NO.5-3E0-S12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 212 Series |
| Sensing Distance | 3 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 60 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Stainless steel, AISI 303 |
| Housing color | Silver |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C |
| Degree of protection | IP 68 IP 69K |
Give Us a Call for Leuze M12 Connector NPN Switch IS 212FM/2NO.5-3E0-S12 part no: 50128177 at the lowest pricing. In-depth Technical Analysis of IS 212FM/2NO.5-3E0-S12, 50128177 feature 212 series, 3 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, NPN, NO (normally open) output, 100 Hz, 1 Piece(s) Connection, M12 Connector , 4 -pin, Cylindrical, 12 mm x 60 mm dimentions, Embedded, Stainless steel, AISI 303, 1 Piece(s) LEDs, Silver color, IP 68 IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze M12 Connector NPN Switch. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
