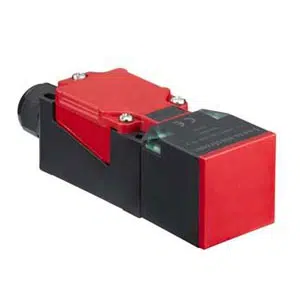

Leuze IS 144 PP/4NO-20E-TB.4 Proximity Sensor
The Leuze IS 144 PP/4NO-20E-TB.4 Proximity Sensor (Part No: ) offers a 20 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, Terminal connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 144 PP/4NO-20E-TB.4 |
Leuze IS 144 PP/4NO-20E-TB.4 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 144 Series |
| Sensing Distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | Terminal |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 115 mm x 40 mm x 140 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Standard measuring plate | 60 x 60 mm², Fe360 |
| Number of LEDs | 2 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 16 mm operating range Sensor IS 144 PP/4NO-20E-TB.4 part no: 50130014at attractive prices. Technical Specs Summary of IS 144 PP/4NO-20E-TB.4, 50130014 feature 144 series, 20 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 300 Hz, 1 Piece(s) Connection, Terminal, 4 -pin, Cubic, 115 mm x 40 mm x 140 mm dimensions, Non-embedded, Plastic, Plastic, Polybutylene (PBT), Black Red, RAL 3000 color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 16 mm operating range Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
