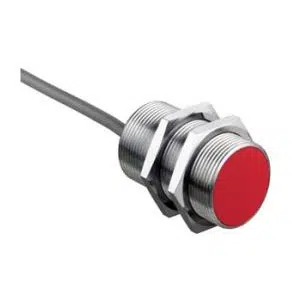

Leuze IS 130MM/2NC-16E Proximity Sensor
The Leuze IS 130MM/2NC-16E Proximity Sensor (Part No: ) offers a 16 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NC (normally closed) output, PVC Cable, 2m Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 130MM/2NC-16E |
Leuze IS 130MM/2NC-16E Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 130 Series |
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 60 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 48 x 48 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze M30 Inductive Switch IS 130MM/2NC-16E part no: 50136059 at unbeatable prices. Detailed Specifications of IS 130MM/2NC-16E, 50136059 feature 130 series, 16 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN , NC (normally closed) , 300 Hz, 0.01 mA max. ≤ 2 V, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 30 mm x 60 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze M30 Inductive Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
