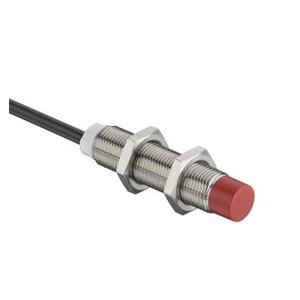

IS 112 MM/2NO-8N0: 50129872 - Leuze 50mm Length Inductive Switch
Technical Specifications of Leuze IS 112 MM/2NO-8N0 50129872:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
Leuze 50mm Length Inductive Switch IS 112 MM/2NO-8N0, 50129872 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 112 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000 mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 50 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze 50mm Length Inductive Switch IS 112 MM/2NO-8N0 part no: 50129872 at unbeatable prices. The Main Technical Parameters of IS 112 MM/2NO-8N0, 50129872 feature 112 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN , NO (normally open) , 500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 50 mm dimentions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze 50mm Length Inductive Switch. Choose us for unparalleled pricing and support over other Dealers & Distributors.
