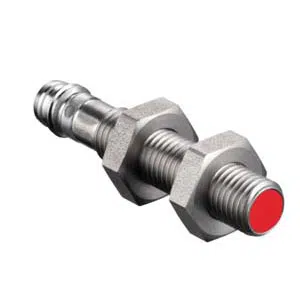

Leuze IS 108 MM/2NO-2E0-M8.3 Proximity Sensor
The Leuze IS 108 MM/2NO-2E0-M8.3 Proximity Sensor (Part No: ) offers a 2 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, M8 Connector connection, 3-Pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 108 MM/2NO-2E0-M8.3 |
Leuze IS 108 MM/2NO-2E0-M8.3 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 108 Series |
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 3,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 3-Pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 8 mm x 60 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 8 x 8 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Get A Quote for Leuze LED Module Inductive Switch IS 108 MM/2NO-2E0-M8.3 part no: 50129914 at the best price. Here are the brief Technical Specifications of IS 108 MM/2NO-2E0-M8.3, 50129914 feature 108 series, 2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, NPN , NO (normally open), 3,000 Hz, 1 Piece(s) Connection, M8 Connector, 3-Pin, Cylindrical, 8 mm x 60 mm dimentions, Embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze LED Module Inductive Switch. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
